EDM and Die Component Manufacturing
Applications to Solutions |
|
Atlas Tool Works, Inc. offers a variety of Electrical Discharge Machining (EDM) services backed by 26 years of experience. EDM is one of the most precise methods of cutting metal available today. Tolerances of +/- .0002" can be held on each of our wire and sinker EDM machines, which can accommodate parts both large (maximum height of 16" and table travel of 16” x 32”) and small.
Our comprehensive precision EDM services include:
- EDM Drilling and Tapping
- Sinker EDM
- Small Hole EDM/Hole Popping
- Large Part EDM
- Production EDM
Wire EDM is the method of choice for stamping die components. It can also be used on production applications when accuracy and precision are critical. Atlas can cut nearly any conductive material, and turnaround times can be scheduled to meet your needs.
Sinker EDM is the method of choice for difficult to machine materials and features that cannot be machined any other way.
Advantages and Benefits
Wire EDM
- Tight tolerance through holes and cutouts
- Square corners and shapes that can’t be machined
- +/- .0002” or better is achievable
- Tapered holes and slots
Sinker/ELOX EDM
- Unique Cavity Shapes
- Sharp Internal Corners
- Small Holes
- Works for any conductive material and some non-conductive material
- Difficult to machine material
We have over 90 years of experience building stamping and forming dies. Our complete, modern tooling department provides additional value added die manufacturing and die maintenance services including:

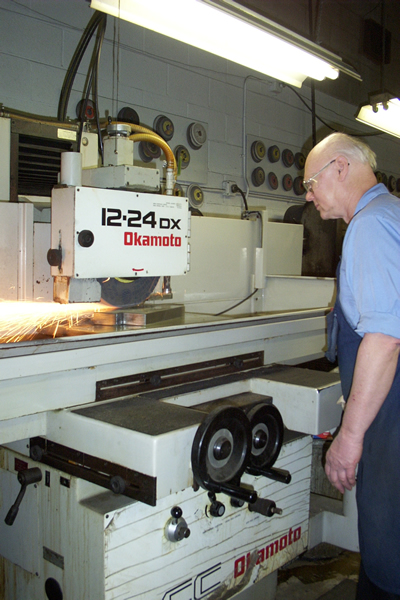

- Grinding
- Turning
- CNC machining
- Heat treating
- Sharpening
- Lapping
- Die components
- Automation components
- Full tooling builds
- Tooling repairs
- Die assembly
